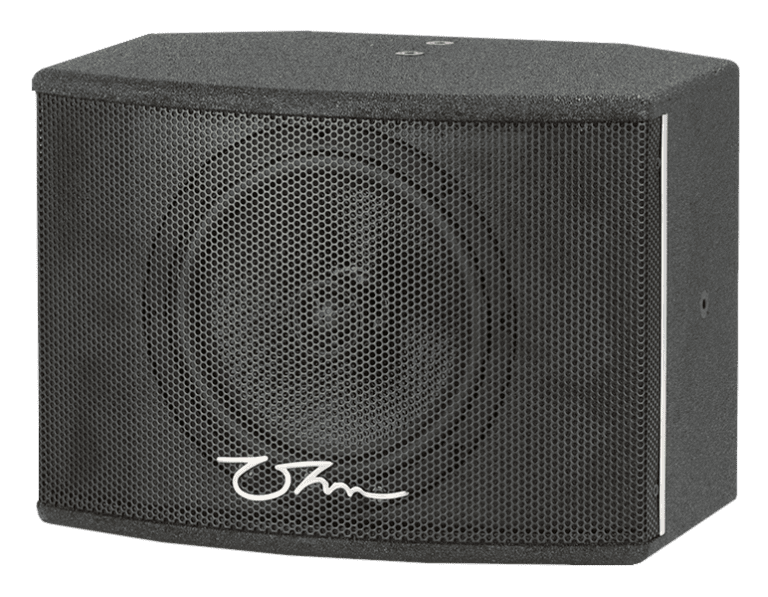

OHM’s KS-3 speaker has been designed with a small footprint. It is best suited for commercial installation projects that require audio quality with minimal visual impact. The extended bass response adds extra functionality without the need of separate subwoofers.
The KS-3 has a coaxial driver design which achieves a 100° x 100° conical dispersion, the internal passive crossover ensures a flat, usable frequency response of 75 Hz to 20 kHz and a maximum SPL of 115 dB (peak).
The discreet look makes them fit any style of décor. The 1 x 8” coaxial mid-high driver + dome tweeter creates a level of clarity and detail which is rare in a cabinet of this size.
Sharing voicing characteristics with the rest of the KS series allowing them to be used simultaneously, keeping a consistent tone.
Mounting options include integrated horizontal cradle fixing points for use with the KC-3 cradle and the rear pan and tilt bracket PTS. Other fixings can be used with this cabinet such as the small wall bracket (SWB) and pan and tilt pole mount adaptor (SS-A).
The rear connector plate has binding post connections fitted as standard.
Custom RAL colours are available on request to make their appearance even more seamless with the surroundings. The discreet design with perforated grill front and acrylic textured paint finish and multiple integrated fixing points achieves a high class look suitable for any application.
Weather resistant version is available with gland back plate, Polyurethane plus enamelled paint finish and metal grill front and 100 v transformer with 3.75, 7.5, 15, 30 and 60 W tap settings.
Use in conjunction with KS or BRS subwoofers for extended bass dynamics.
Multiple mounting points with an array of optional hardware ensure they can be installed in most orientations.
Please call us at Old Barn Audio on 01892 752246 if you have any questions or would like to buy or have installed the OHM KS-3 speaker or indeed any other product from the OHM Range.
Features of OHM KS-3 Speakers
- Hi-Fi grade components give extended 75 Hz frequency response
- Defined and accurate 100° x 100° dispersion minimises reflection and feedback issues
- Compact coaxial
- Weather resistant speaker available
